Accurate service, flexible design.
Whether you're remodelling your bathroom or building a new apartment complex, Aquacut (2000) Limited is the name to trust in Auckland. With our specialised 2D CAD technology we can bring your idea to life and maintain your design plan. Speak with our precision cutting team today.

Design requirements

Our team encourages you to provide your designs. We enjoy tackling a challenge and will work with you every step of the way to ensure a perfect final result. When delivering your own design there are some specifications we require to best carry out the project. Following these guidelines will reduce the time and cost of converting your file into our system.
  • All cutting parameters must be on one layer
  • All profiles must be of line type - continuous
  • All curves must be made up of arcs (not many short lines)
  • All lines and arcs must intersect properly - no breaks or overlaps. Convert the profile into a polyline to see if all items join
  • Eliminate all blocks, text styles, borders and logos (use the purge command). If you have more than one profile please put them all in one separate file
  • Please send or fax clear drawings with dimensions - if possible

What files can we use?

At Aquacut (2000) Limited we are proud to offer 2D CAD technology for all of your precision cutting requirements in Auckland. You can send your designs either via email or on disk, in the below formats:
  • DXF format (preferred) - Drawing Xchange format - Export to 6 decimal place accuracy
  • DWG format - Autocad LT2000, LT98 or earlier
  • CDR format CorelDraw - earlier to version 9

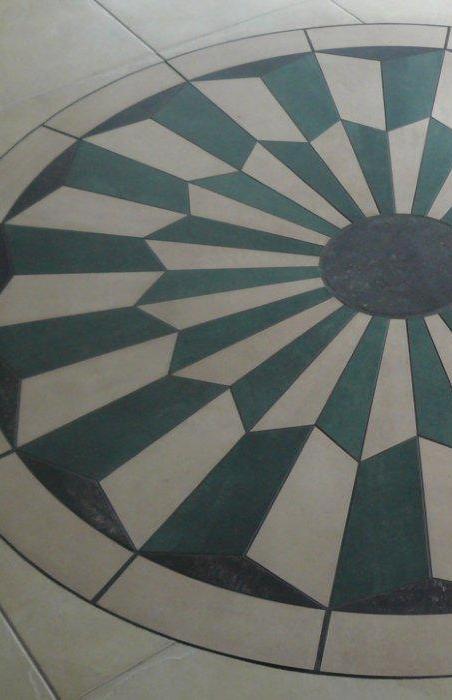

floor tile work
